Outstanding Features of the On-A-Roll® Lifter Power Universal Hi-Rise

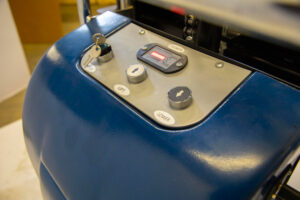

Easy Controls
The tray lifts and lowers with the push of a button, uses standard outlets for re-charging

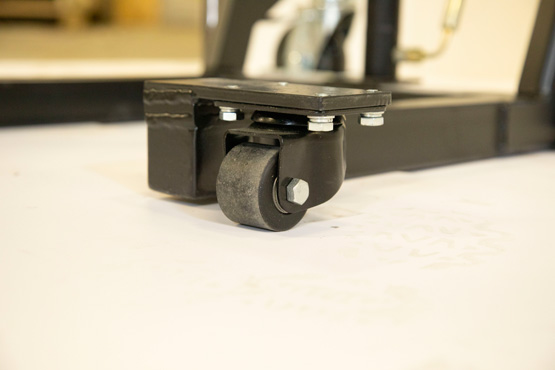

Low Clearance Casters
3”H front swivel casters fit under Laminators and other machines with low clearances
Safety Straps
Safety straps secure rolls to the tray and prevent shifting during transport
Extra Lift Height
54” lift height reaches top roller
Removable Roll Wedges
Removable roll wedges and flat roll tray fits between rollers and openings.
Optional Roller Platform
Model #63161 Optional Roller Platform is designed to allow operators to feed rolls into their machines directly from the lifter.
Features:
- Powerful DC motor easily lifts and lowers rolls, eliminating manual labor and power lift reduces roll changeover time
- Lifts rolls up to 54” to easily load and unload rolls onto the laminators
- Thin flat roll tray easily fits into the side of the roll loading area on laminators
- Pair of heavy-duty rear swivel casters with easy step-on locking brake
- Reduces on-the-job injuries and enables all workers to move heavy rolls
- User-friendly operation avoids costly and dangerous handling mistakes that damage media
- Rugged construction ensures long lifter life
- Single-person operation saves labor and time

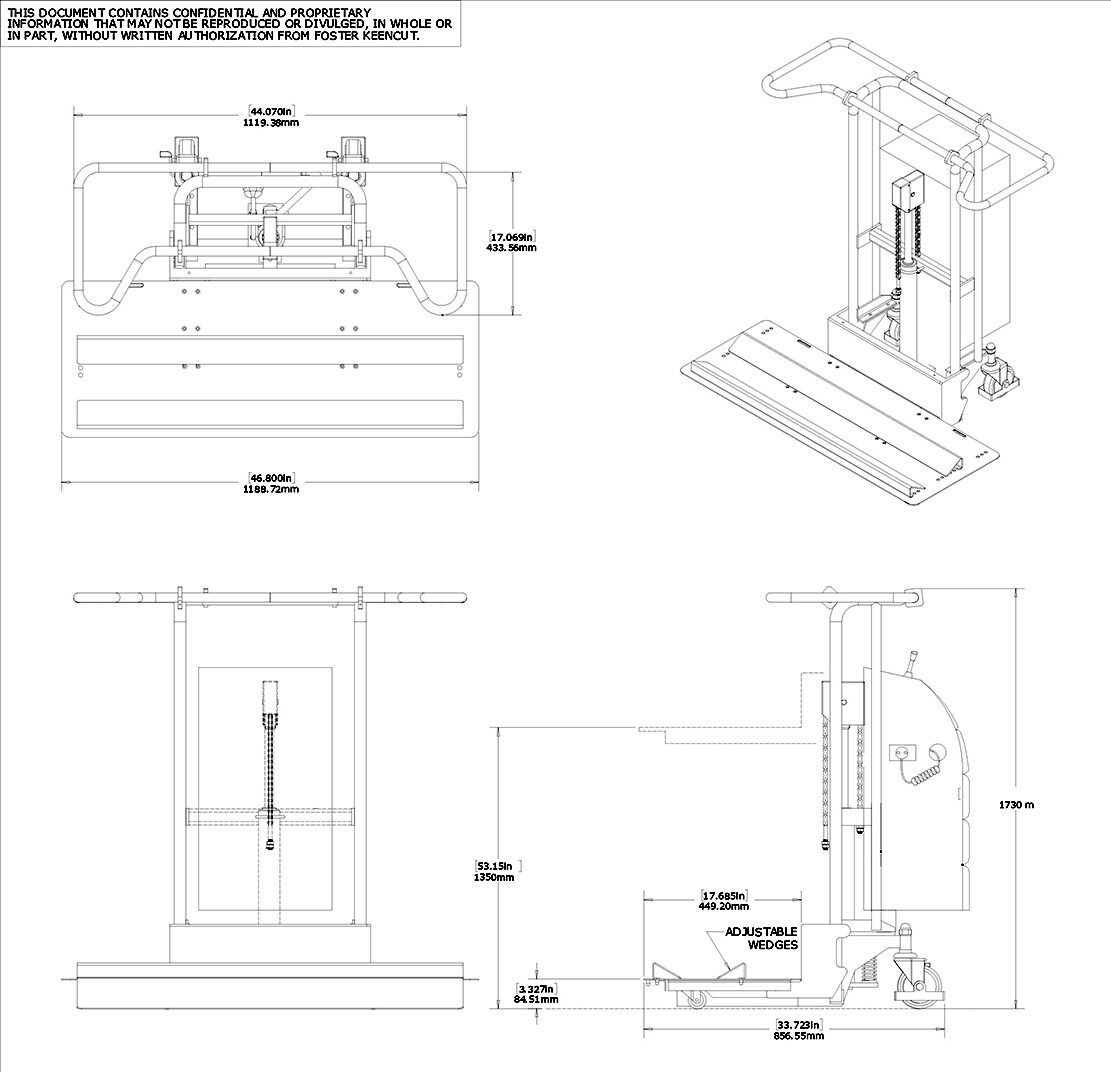

| Specifications | 61565 |
|---|---|
| Roll Weight Capacity | 660 lbs (300 kg) |
| Lift Height | 54″ H (135 cm) |
| Max. Roll Width | 13′ (400 cm) |
| Max. Roll Diameter | 15.75″ (40 cm) |
| Overall Dimensions (W x D x H) | 47.25”W x 35.5”D x 68″H (120 x 90.3 x 173 cm) |
| Media Lifter Weight | 271 lbs (123 kg) |
| Bottom Fork Clearance | 3.25” (8.25 cm) |
| Front Swivel Castors | 2″ (5cm) |
| Rear Swivel Castors | 5″ (12.7 cm) |
| Electric | 12V/60AH DC motor USA (220V/50HZ DC motor Europe) |
| Battery | Maintenance free lead acid battery |
| Charger | Built-In 110V AC charger USA (Built-In 220V AC charge Europe) |
On-A-Roll® Lifter Power Universal Hi-Rise
| 61565 | On-A-Roll® Lifter Power Universal Hi-Rise | $5,300.00 |
| 63161 | Roller platform for Hi-Rise & Standard Models (800 x 325mm) Used in place of the Roll Tray | $895.00 |
