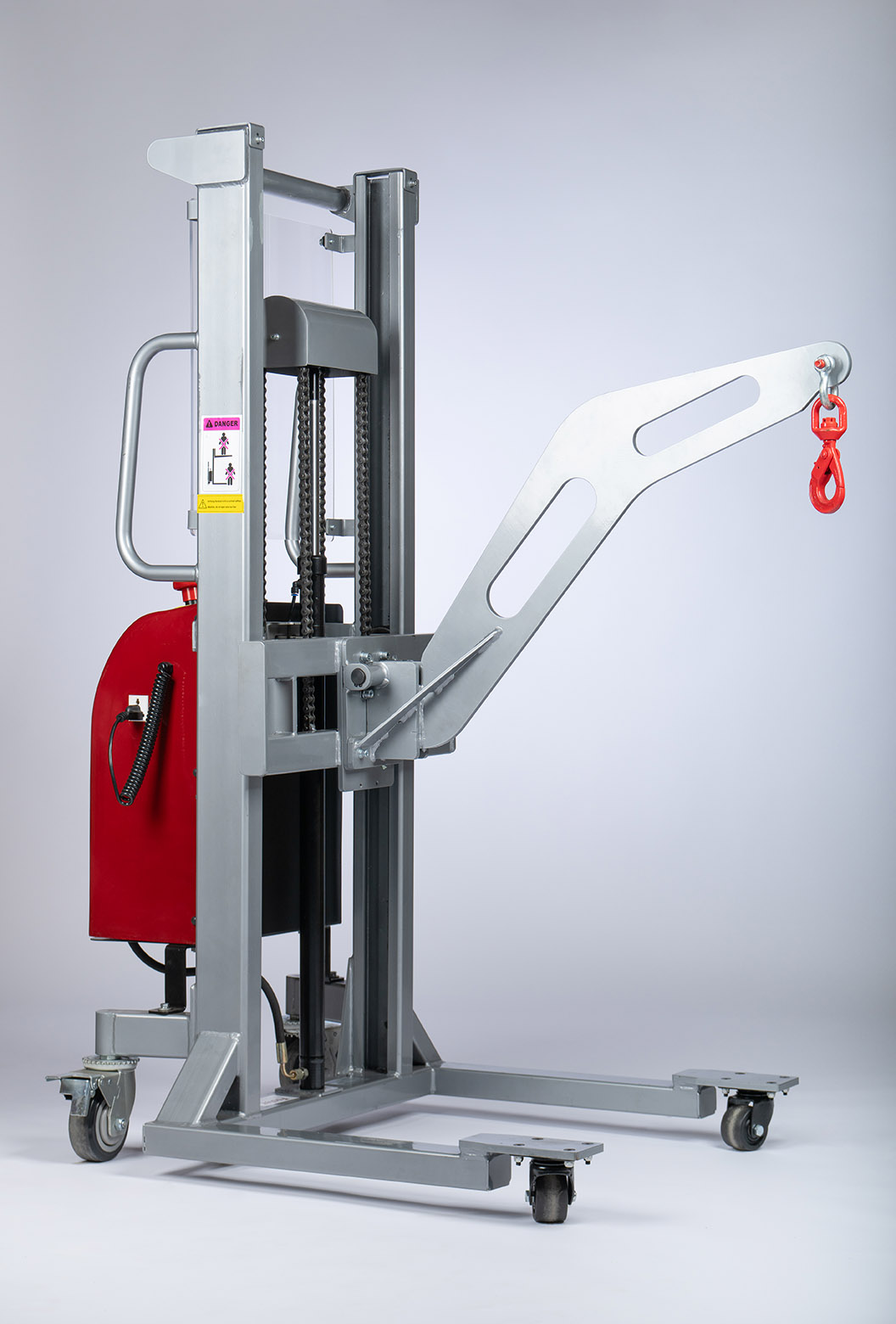

On-A-Roll® Lifter Narrow Web: Power Die Hook Arm 72.8”H

Designed for Label Printers and Converters

Motorized Lifting

Narrow Web On-A-Roll® Lifters for label printers and converters provide a quick and safe solution for positioning and loading narrow web rolls onto presses and converting machines. It Increases safety and reduces the risk of handling damage to valuable roll media with minimal operator training.

User friendly operation avoids costly and dangerous roll handling mistakes that damage media.

In any shop handling rolls of print media or other material, a Foster Narrow Web On-a-Roll® Lifter is a must-have tool.

Here are just a few reasons:

Material damage is reduced or eliminated when moving rolls
Reduced on-the-job injuries and enables workers to easily handle heavy rolls
Heavy material rolls are handled quickly and easily

Use Narrow Web On-A-Roll® Lifter with these brands of Flexo and Digital narrow web presses and others:
• Bobst • Edale • Gallus • Mark Andy • MPS • Nilpeter • Omet • RotaFlex

Find a Dealer

Get a Quote

Download Documentation

Lifter Parts

Features:

Lifter with Die Hook Arm
Motorized Lifting/Manual Movement
With 4 swivel casters
Lifter supplied with Die Hook Arm

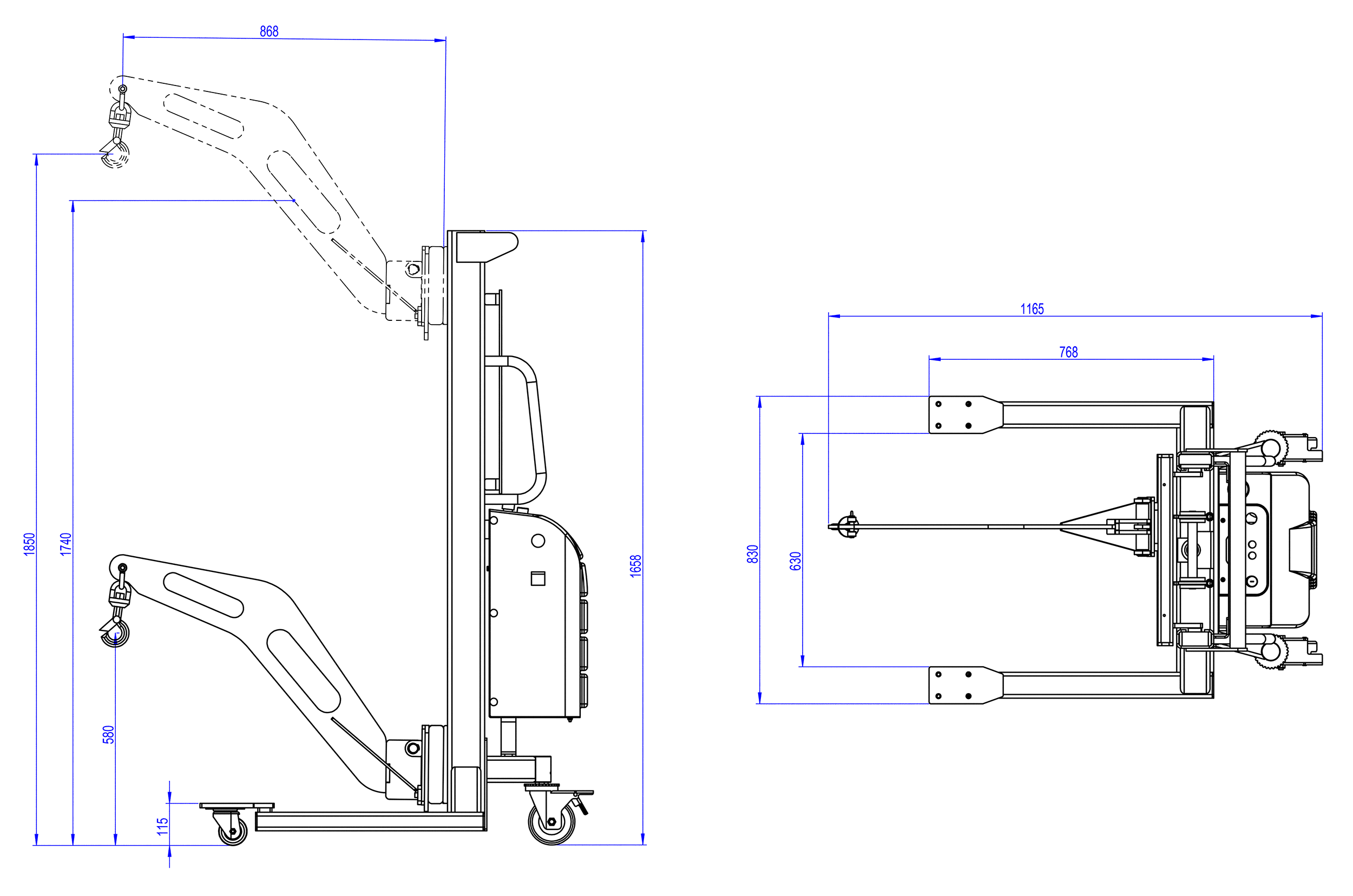

Specifications	61555
Roll Weight Capacity	330 lbs (150 kg)
Lift Height	72.8” (185 cm)
Min. Die Hook Height	22.83″ H (58 cm)
Die Hook Distance	34.17″ (86.8 cm)
Overall Dimensions (W x D x H)	32.68”W x 45.87”D x 65.27”H (83 x 116.5 x 165.8 cm)
Media Lifter Weight	341 lbs (155 kg)
Bottom Fork Clearance	4.53″ (11.5 cm)

On-A-Roll® Lifter Narrow Web: Power Die Hook Arm 72.8”H

61555

On-A-Roll® Lifter Narrow Web: Power Die Hook Arm 72.8”H

$8,995

Warranty

All Foster products have a one year warranty except:

Rotatrim cutting wheels
Casters for lifters
Electrics and batteries

These are consumable items not covered under the one year warranty.

Foster partners with carefully selected dealers who can work with your shop to provide total solutions for all our products. Click “Find Your Local Dealer” to get local service, installation, training, parts, and competitive pricing.
