The All-A-Board Lifter® moves rigid substrates through narrow aisles, doors, and between machinery. Feed boards into printers and use as a mobile workbench to meet changing workflow and space requirements.
“I don’t know how Color Reflections could manage without this Lifter”
–Eric Berger, Owner
Color Reflections, A leading provider of digital color printing and graphics
Handle along the back of the frame allows operators to maneuver and rotate table top from vertical to flat position. Pull handle allows operator to easily release latch mechanism and return table to vertical position.
Outstanding Features of the Height Adjustable All-A-Board Lifter®

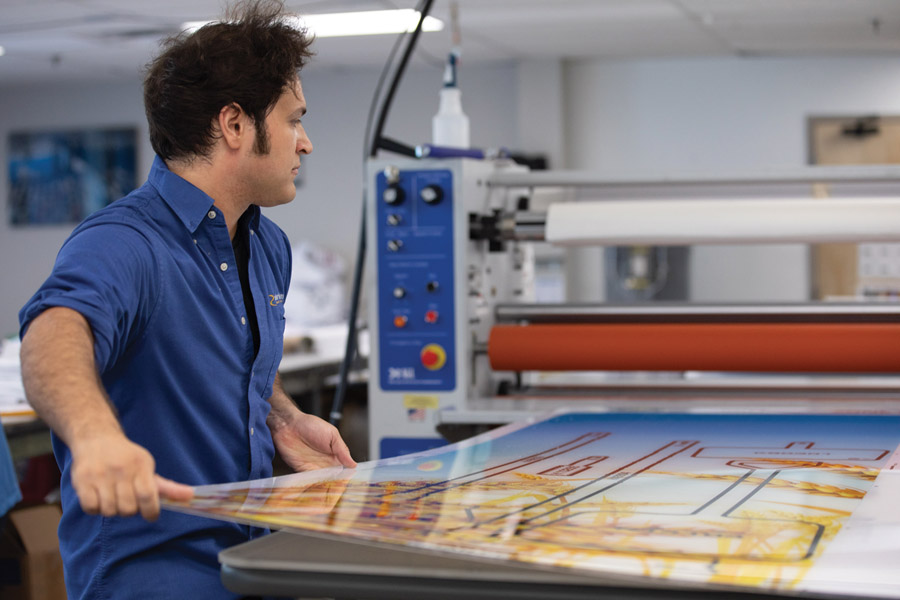

Easy Feeding
Quickly and safely feed boards onto printers, cutters, and laminators without bending or lifting.

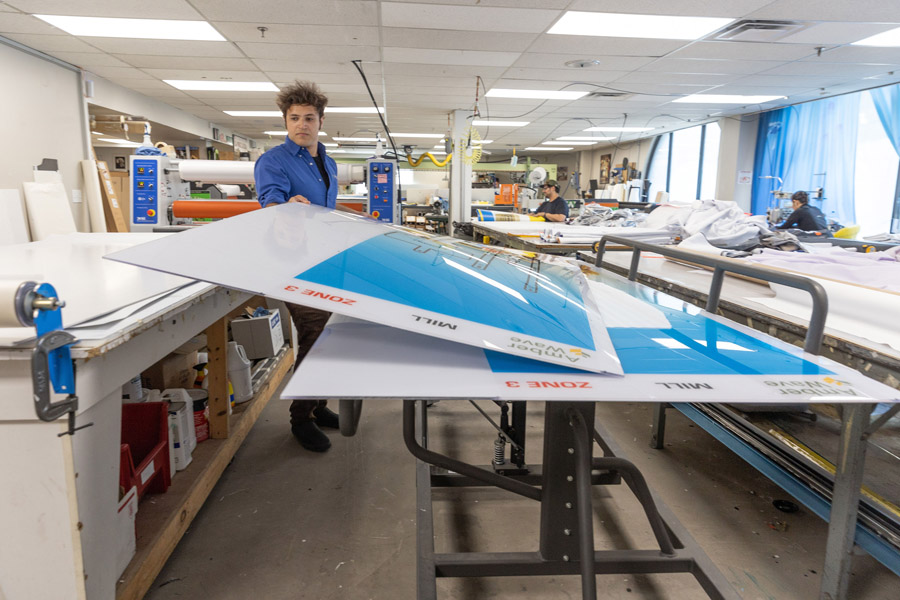

Mobile Workbench
In a flat position, the Lifter functions as a mobile workbench, moving from station to station and frees up valuable floor space.
Secure Railings
Deck rails keep 8” stacks of rigid substrates from shifting during transport and loading.

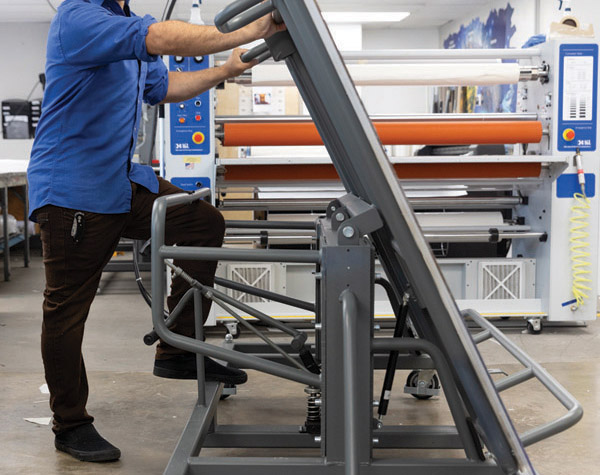

Tilt and Lock
The tilt down and locking feature lets the operator safely move heavy sheets from horizontal to vertical position.

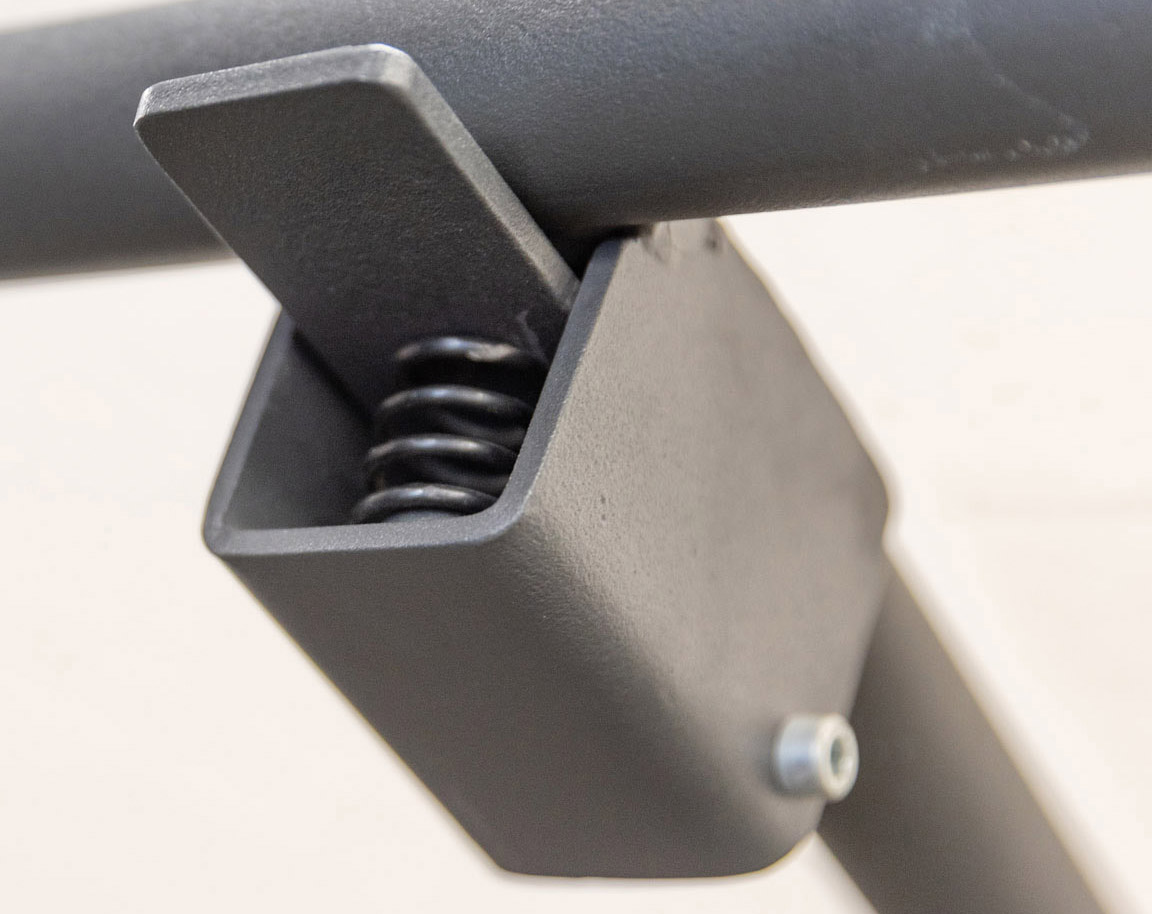

Spring Loaded Latches
Spring loaded latch mechanism locks table top in flat position.

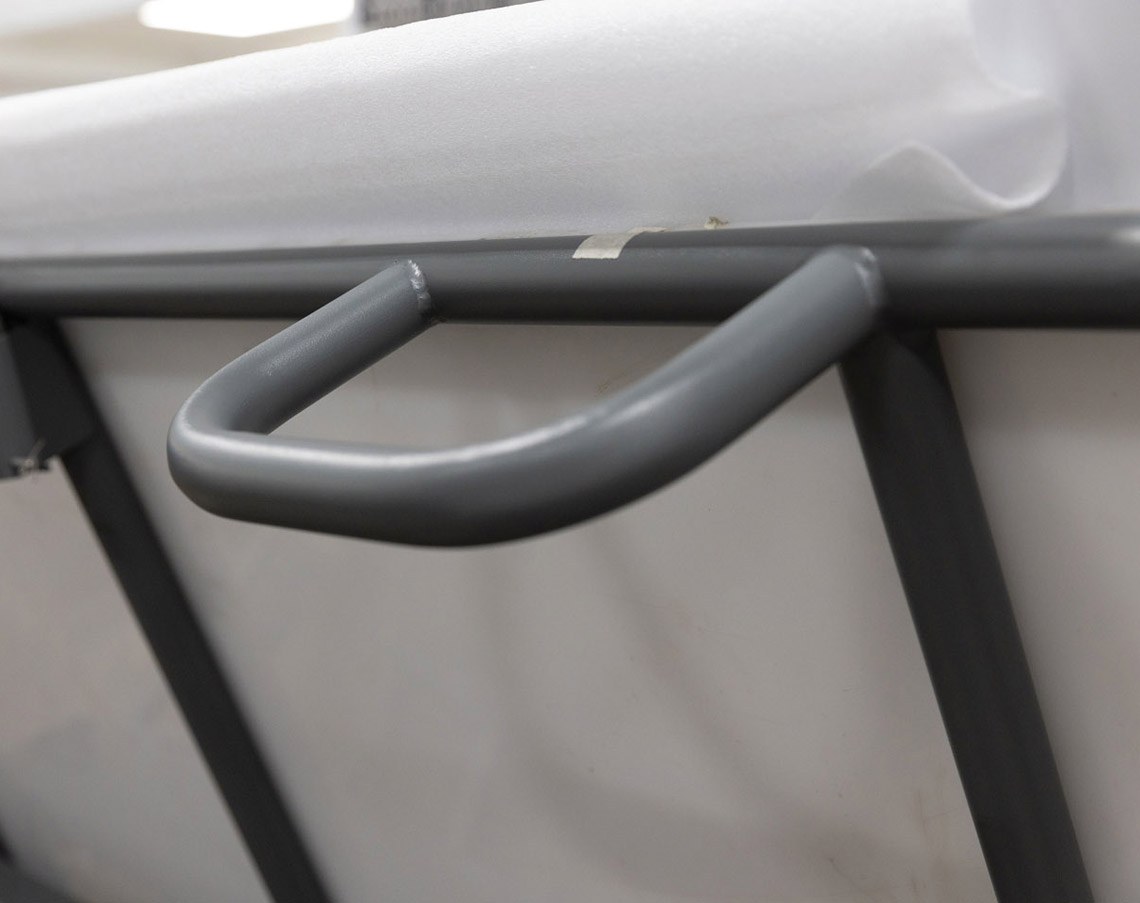

Easy Maneuvering Handles
ONE OPERATOR can use the handlebar under the table for easy maneuvering of materials and rotation from a vertical to a flat position.
Features:
- Maximum Board Size: Model 61613 – 5’ x 10’
Maximum Board Size: Model 61612 – 4’ x 8’ - Maximum weight capacity 500 lbs.
- Min/Max Deck height 34” – 42” H
- Max. tilting angle 66°(at 32” H)
- 3-ft. wide tilt in the vertical position guides the user through narrow aisles, doorways, and around tight corners
- Functions as a workbench or table in a flat position
- Durable high-pressure laminate surface, fastened to Lifter frame with counter-sunk (Flat Head Cap Screw) hardware that prevents scratching and is impact resistant
- Four heavy-duty 5” diameter swivel locking casters for smooth maneuvering
- Welded steel frame ensures long-lasting use
Models #61612 and #61613
Model #61613 with fold-down rail for handling 5’ x10’ sheets
| 61613 | Height Adjustable All-A-Board Lifter® with fold-down rail | $2,998.00 |
| 61612 | Height Adjustable All-A-Board Lifter® | $2,898.00 |
