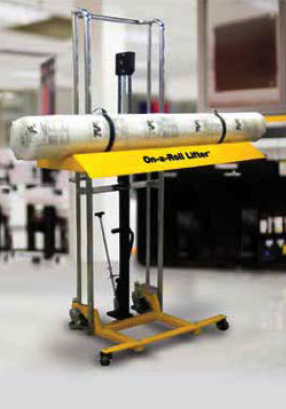

On-A-Roll® Lifter Hi-Rise

Lifts rolls up to 71″ H

Manual Lifting

Save Your Back.

No pulling. No heaving. No hefting. In minutes, with no strain to the back, you can lift heavy or wide rolls associated with today’s larger and faster print runs. The Hi-Rise On-A-Roll® Lifter’s sturdy steel construction allows the lifting of media up to 440 lbs.

Save Money.

Avoid costly and dangerous mishandling mistakes that result in damaged media by using the secure Hi-Rise On-A-Roll® Lifter.

Save Time.

What was once a two-person job becomes manageable by one, allowing a single employee to safely handle oversized and heavy media. The new design allows rolls to be lifted up to 71″ high for storage and loading onto printers.

Save Space.

Sleek and solid, the Hi-Rise On-A-Roll® Lifter is designed to operate in the tightest of shops – even those with limited floor space. The bottom fork has a 4″ (10 cm) clearance.

Find a Dealer

Get a Quote

Download Documentation

Lifter Parts

A rugged lifter designed specifically for fabric printers, sign makers, converters, grand- and wide-format printers, or any business with the need to lift heavy media or fabric rolls. Sturdy steel construction permits lifting rolls as heavy as 440 lbs (200 kg) nearly 6 ft (180 cm). Solves the problem of loading converting machines or printers with high inputs. Enables fabric printers to easily lift rolls onto tall production tables for spreading, sewing, or finishing. Permits using higher than normal storage for media or fabric rolls.

Outstanding Features of the On-A-Roll® Lifter Hi-Rise

Nylon Safety Straps

Nylon safety straps allow solo users to pull media rolls of up to 660 lbs. into the securing tray for transport.

Foot Pump

The easy-to-use foot pump allows users to raise the material for transport with minimal effort.

Rotating Casters

Heavy-duty rotating casters allow users to navigate through standard doors and narrow passages.

Ergonomic Push Bar

Ergonomic push bar permits easily maneuvering of large, heavy rolls.

Efficient Loading

Slide your media rolls right up to the printer for efficient loading.

Optional Roller Platform

Model #63161 Optional Roller Platform is designed to allow operators to feed rolls into their machines directly from the lifter.

Features:

Low profile fork clearance of 4″ (100mm).
Extended nylon safety straps provide leverage to help guide the roll into the trough and ensure materials are secured for transport.
Concave trough design of the media tray stabilizes rolls for transport.
Foot pump allows for smooth, effortless lifting within minutes.
360° heavy-duty rotating (and locking) casters enable maneuvering through standard doors and narrow passages.
Solid steel handle extension provides additional control for the user to maneuver materials in tight spots.

Specifications	61570
Roll Weight Capacity	440 lbs (200 kg)
Lift Height	71″ (180 cm)
Max. Roll Width	71″ (180 cm)
Max. Roll Diameter	18.5″ (47 cm)
Overall Dimensions (W x D x H)	47.25″ x 31.5″ x 80″ (120 x 80 x 203 cm)
Media Lifter Weight	198 lbs (90 kg)
Bottom Fork Clearance	4″ (10 cm)

On-A-Roll® Lifter

61570	Hi-Rise On-A-Roll® Lifter Lifts rolls up to 71″H	$3,770.00
63161	Roller platform for Hi-Rise & Standard Models (800 x 325mm) Used in place of the Roll Tray	$895.00

Warranty

All Foster products have a one year warranty except:

Rotatrim cutting wheels
Casters for lifters
Electrics and batteries

These are consumable items not covered under the one year warranty.
