ON-A-ROLL® Lifter Power Low Profile Grande Max

Best for handling 2200 lb. rolls and printers with low clearances

Motorized Lifting

Reduces on-the-job injuries and enables operators to safely move heavy rolls without damaging media.

With a powerful 12-volt DC motor, the On-a-Roll Lifter® Power Low Profile Grande Max allows one operator to easily lift and lower rolls as heavy as 1,000 kg (2,200 lbs) and as wide as 5 m (16 feet 5 inches) and with diameters as great as 80 cm (31.5 inches). This motorized lifter securely positions large and heavy rolls while providing a safe, effortless, and efficient solution for handling. 8 cm diameter fixed front casters provide lower clearance in the front forks allowing it to fit under most grand format printers.

Outstanding Features of the On-A-Roll® Lifter Power Low Profile Grande Max

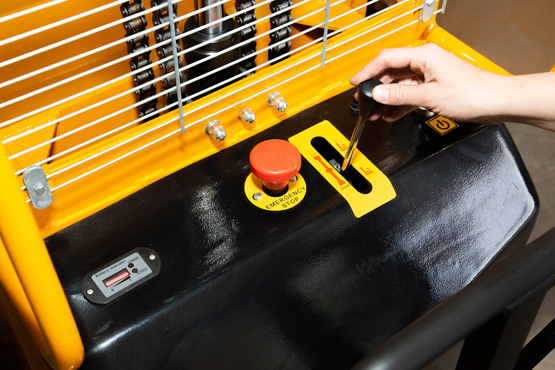

Ergonomic Push Bar

The tray lifts and lowers with the push of a lever, re-charges standard outlets

Efficient Loading

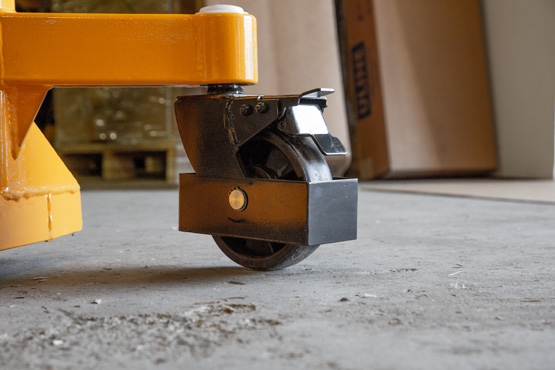

Pair of heavy-duty swivel casters with easy step-on locking brake.

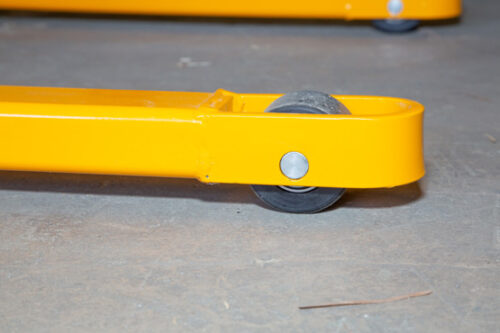

Fixed Front Casters

Fixed front casters have a bottom fork clearance of 3.15” (8cm)

Features:

  • Powerful DC motor easily lifts and lowers rolls, eliminating manual labor
  • Power lift reduces roll changeover time
  • Pair of heavy-duty rear swivel casters with easy step-on locking brake
  • Low profile ramp tray for easy loading and unloading rolls
  • Rugged construction
  • Single-person operation saves labor and time
Specifications61548
Roll Weight Capacity2200 lbs (1000 kg)
Lift Height45.2″ H (115 cm)
Minimum Tray Height
Max. Roll Width16’5″ (5 m)
Max. Roll Diameter31.5″ (80 cm)
Overall Dimensions (W x D x H)47.24”W x 45.2”D x 59.1″H
(120 x 114.8 x 150 cm)
Media Lifter Weight600 lbs (272 kg)
Bottom Fork Clearance3.15” (8 cm)
Electric12V/60AH DC motor
BatteryMaintenance free lead acid battery
ChargerBuilt-In 110V AC charger

On-A-Roll® Lifter Power Low Profile Grande Max

 61548 On-a-Roll Lifter® Power Low Profile Grande Max $7,875.00

Warranty

All Foster products have a one year warranty except:

  1. Rotatrim cutting wheels
  2. Casters for lifters
  3. Electrics and batteries

These are consumable items not covered under the one year warranty.

Foster partners with carefully selected dealers who can work with your shop to provide total solutions for all our products. Click “Find Your Local Dealer” to get local service, installation, training, parts, and competitive pricing.
