“Touchless” Fabric And Transfer Paper Roll Handling
Clearance Price: $4,395.00
Original List price: $9,030
YOUR ROLLS ARE DAMAGE FREE!
- Telescoping arm hooks hold the ends of the roll spindles, so there is no direct contact or pressure on freshly printed transfer paper or fabric.
- Safety latches prevent the spindle and media roll from falling off the hooks during transport.
FINISH YOUR JOBS QUICKLY AND WITHOUT BACK PAIN
- Foster’s Dye Sub On-a-Roll Lifter does the job of two people. Users effortlessly lift rolls as heavy as 400 lbs. and as wide as 142”.
- Eliminate manual labor of lifting and lowering rolls and reduce roll changeover time.
- Powerful, rechargeable DC motor.
RETRACTABLE TELESCOPING ARMS
- Cantilevered Design fits multiple sizes and brands of fabric graphic printers.
- Collapse to half their length for compact storage.
- Two bolt sets easily attach to the arm assemblies.
Outstanding Features of the Power Dye Sub On-A-Roll® Lifter
The hook’s raised portion prevents it from damaging the printer and is a guide for positioning under the spindle.
Lock knobs secure the distance between the hooks.

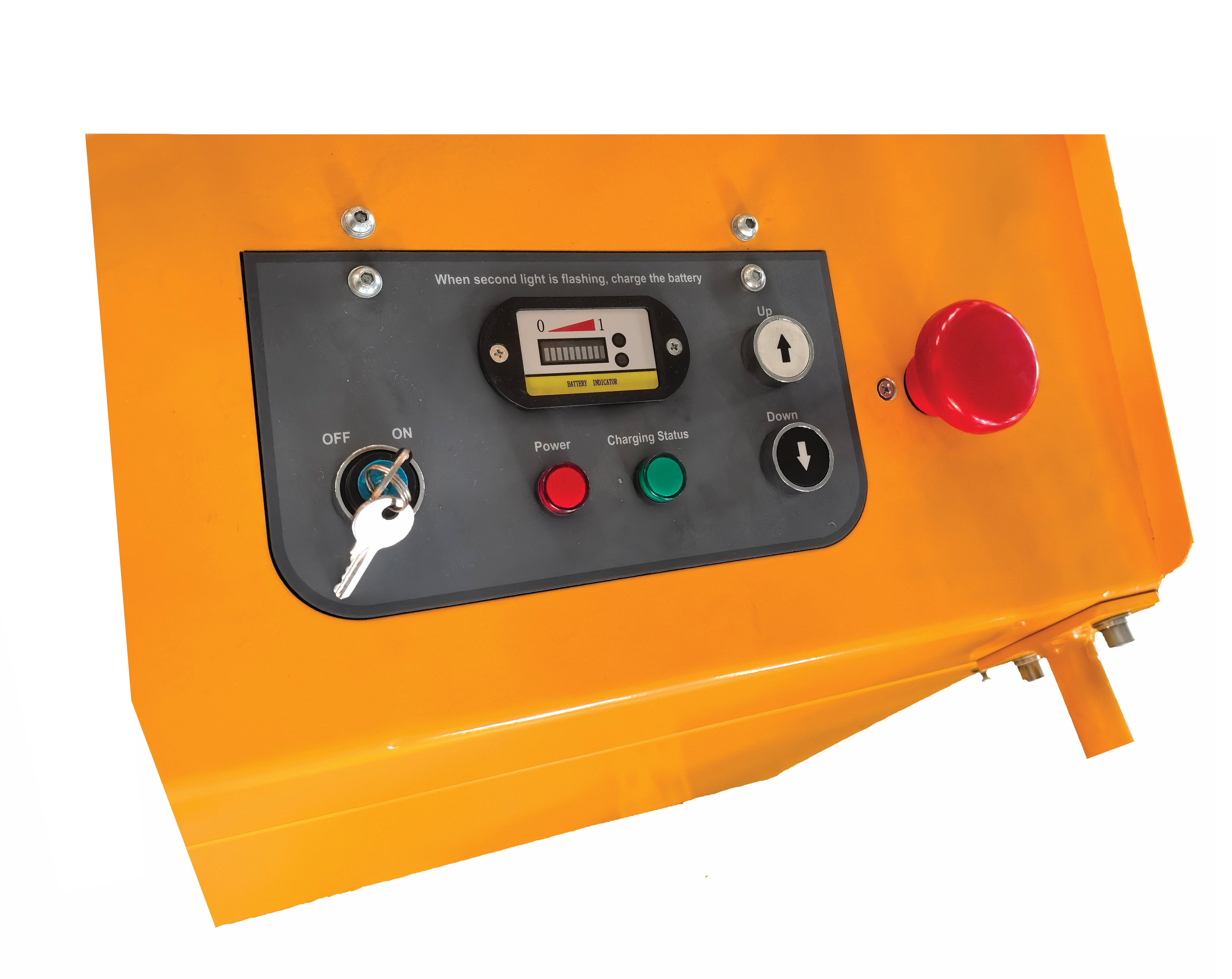

Easy to use controls lifts and lowers the arms with the push of a button.
Features:
- Lifting speed: 3” per second
- Arms adjust from 82 2/3” W to 122 5/6” W
- Heavy-duty C100 foot operated floor lock
- Heavy-duty 12V battery
- 3 position “Comfort Cushion” push handle
Warranty:
All Foster products have a one year warranty except:
- Casters for lifters
- Electrics and batteries
These are consumable items not covered under the one year warranty.
| Specifications | 61536 |
|---|---|
| Roll Weight Capacity | 400 lbs. (136 kg) |
| Load Center | 13″ (33 cm) |
| Load Height | 14.5″ (37 cm) |
| Max. Lift Height | 63.75” (162 cm) |
| Core Diameter | 3” (7.6 cm) |
| Max. Spindle Length | 142″ (361 cm) |
| Max. Roll Diameter | 26” (66 cm) |
| Overall Dimensions (W x D x H) Arms Fully Extended | 124.8″W x 49″D x 80″H (317 x 124.5 x 203.2 cm) |
| Width – Arms Fully Retracted | 84.5” (215cm) |
| Wheel Diameter | 5″ x 4″ (12.7 x 10.1 cm) |
| Battery | Heavy-duty 12V battery |

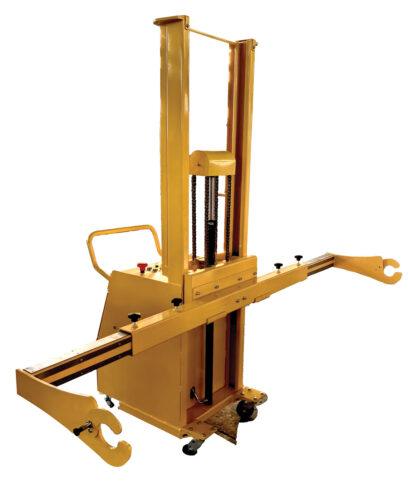

Power Dye Sub On-A-Roll® Lifter
| 61539 | Power Dye Sub On-a-Roll® Lifter | Now only $4,395 |
